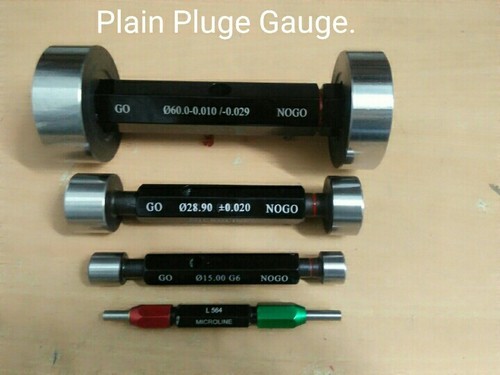

A plug gauge, similar to a pin gauge, is a precision measurement tool used to check the dimensions of holes. It consists of a cylindrical rod or plug with a precisely defined diameter, made from materials such as hardened and ground steel. Plug gauges are used to verify the internal dimensions of holes, ensuring they meet specified tolerances.
Here's how plug gauges are typically used:
Selection of Plug:
The operator selects a plug gauge with a diameter that matches the nominal size of the hole to be measured.
Insertion into the Hole:
The plug gauge is inserted into the hole being measured.
Checking Fit:
The fit of the plug gauge inside the hole is assessed. If the plug goes in easily and fits snugly, the hole is within tolerance. If there's resistance or if the plug doesn't fit at all, it indicates that the hole is smaller than the plug diameter.
Verification of Tolerance:
The fit of the plug gauge helps determine whether the hole falls within the acceptable tolerance range.
Plug gauges are essential tools in quality control and precision machining processes. They are commonly used in industries such as manufacturing, aerospace, and automotive, where accurate hole dimensions are critical for the proper functioning of components. Like pin gauges, plug gauges come in sets with plugs of various diameters to cover a range of hole sizes.
At Meru Precision Industries, we design and manufacture high-accuracy assembly fixtures tailored to meet demanding industrial requirements.
This fixture is engineered to ensure consistent assembly, reduced operation time, and error-free alignment of components during production.
Our assembly fixture is developed using best-in-class engineering practices, backed by years of expertise in gauge design, tool design, and precision manufacturing.
Jigs and fixtures are both types of specialized tools used in manufacturing processes, particularly in machining, assembly, and inspection operations.
We are expertized in manufacturing of jigs and fixtures according to our customer requirements.
A taper plug gauge is a precision measurement tool used to check the internal taper of a hole or a conical recess. It is designed to ensure that the internal surface of a tapered hole meets specified dimensional requirements. Taper plug gauges are commonly used in industries where precise taper angles are critical, such as in machining, tool and die making, and various manufacturing processes.
Here are some key points about taper plug gauges:
Design: Taper plug gauges typically consist of a tapered rod or plug with a specific angle that matches the required taper. The gauge is designed to fit into the tapered hole or recess being measured.
Measurement Process:
The taper plug gauge is inserted into the tapered hole.
The fit of the gauge within the hole is assessed to determine if it meets the specified taper angle.
Verification of Tolerance: Taper plug gauges are used to verify that the taper of the internal surface falls within acceptable tolerance limits.
Applications: They are commonly used in applications where tapered holes need to be accurately machined, such as in the production of machine tool components, bearings, and various precision engineering applications.
Material: Taper plug gauges are typically made from hardened and precision-ground steel to ensure accuracy and durability.
Taper plug gauges play a crucial role in maintaining the quality and precision of machined components with tapered features. Like other types of gauges, they contribute to quality control processes by ensuring that the manufactured parts conform to the specified design and dimensional requirements.
