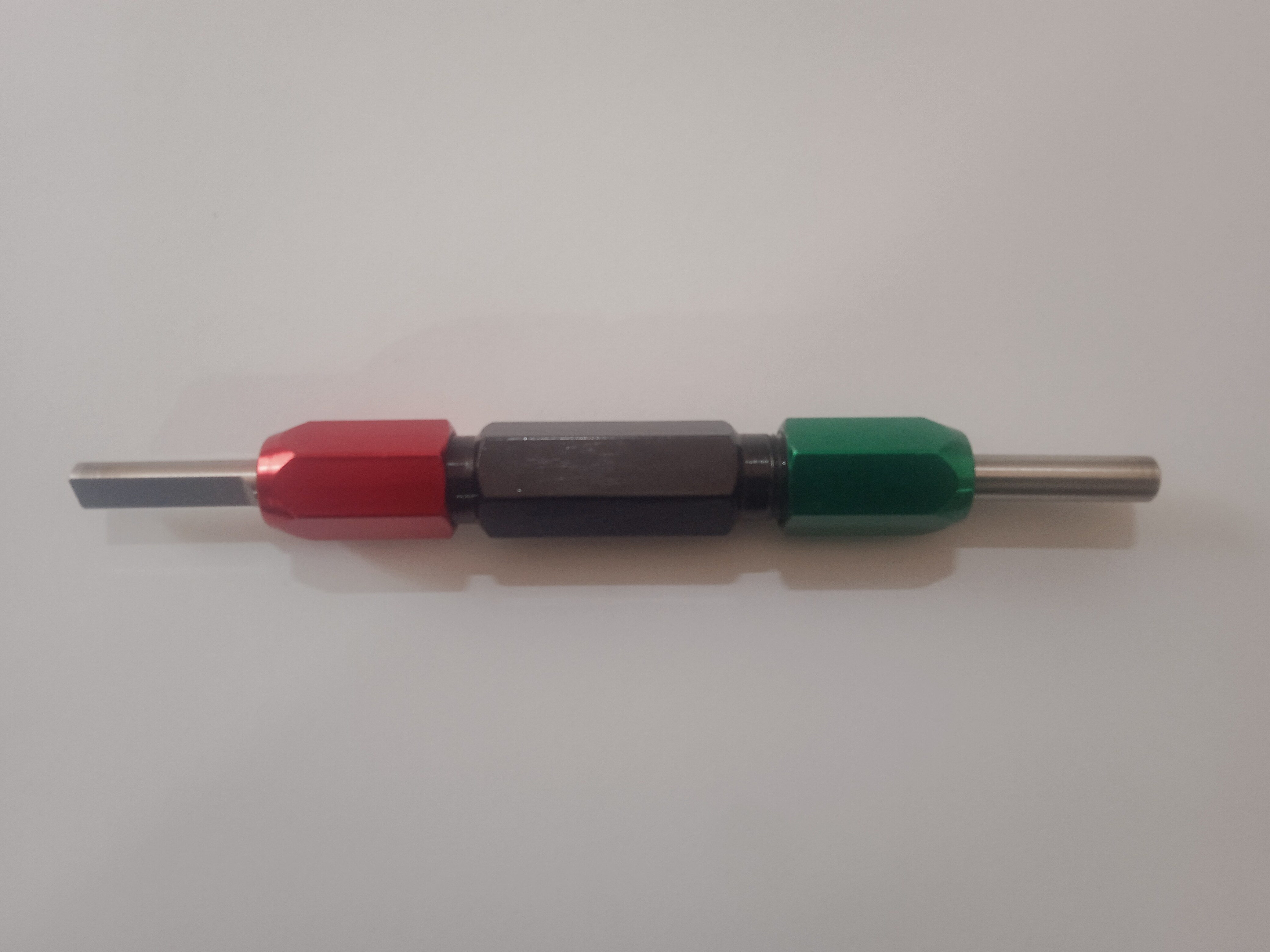

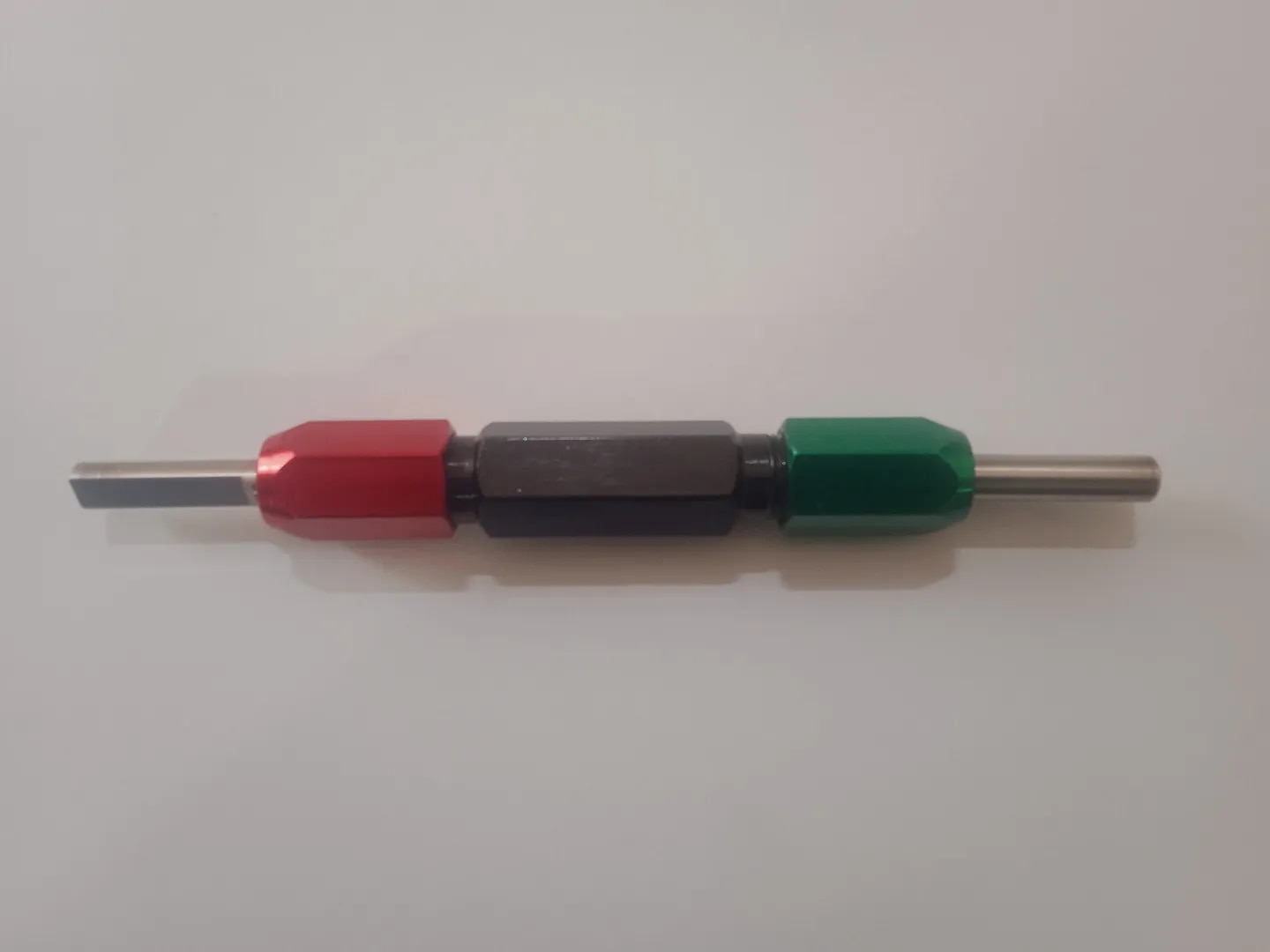

A pin gauge, also known as a plug gauge, is a precision instrument used to measure the diameter of holes. It consists of a cylindrical metal rod or pin with a precisely known diameter. These pins are typically made from hardened and ground steel to ensure accuracy and durability.
Here's how pin gauges are used:
Selection of Pin:
The user selects a pin gauge with a diameter that matches the nominal size of the hole to be measured.
Insertion into the Hole:
The pin gauge is carefully inserted into the hole being measured.
Checking Fit:
The fit of the pin in the hole is assessed. If the pin goes in freely and smoothly, the hole is within tolerance. If there's resistance or if the pin doesn't go in at all, it suggests that the hole is smaller than the pin diameter.
Verification of Tolerance:
The fit of the pin helps determine whether the hole falls within the acceptable tolerance range.
Pin gauges are commonly used in manufacturing and quality control processes to ensure the accuracy of holes in machined or manufactured components. They are crucial for maintaining precise measurements and ensuring that holes meet the required specifications. Pin gauges come in sets with pins of varying diameters, allowing for a comprehensive range of measurements.
At Meru Precision Industries, we design and manufacture high-accuracy assembly fixtures tailored to meet demanding industrial requirements.
This fixture is engineered to ensure consistent assembly, reduced operation time, and error-free alignment of components during production.
Our assembly fixture is developed using best-in-class engineering practices, backed by years of expertise in gauge design, tool design, and precision manufacturing.
Jigs and fixtures are both types of specialized tools used in manufacturing processes, particularly in machining, assembly, and inspection operations.
We are expertized in manufacturing of jigs and fixtures according to our customer requirements.
A taper plug gauge is a precision measurement tool used to check the internal taper of a hole or a conical recess. It is designed to ensure that the internal surface of a tapered hole meets specified dimensional requirements. Taper plug gauges are commonly used in industries where precise taper angles are critical, such as in machining, tool and die making, and various manufacturing processes.
Here are some key points about taper plug gauges:
Design: Taper plug gauges typically consist of a tapered rod or plug with a specific angle that matches the required taper. The gauge is designed to fit into the tapered hole or recess being measured.
Measurement Process:
The taper plug gauge is inserted into the tapered hole.
The fit of the gauge within the hole is assessed to determine if it meets the specified taper angle.
Verification of Tolerance: Taper plug gauges are used to verify that the taper of the internal surface falls within acceptable tolerance limits.
Applications: They are commonly used in applications where tapered holes need to be accurately machined, such as in the production of machine tool components, bearings, and various precision engineering applications.
Material: Taper plug gauges are typically made from hardened and precision-ground steel to ensure accuracy and durability.
Taper plug gauges play a crucial role in maintaining the quality and precision of machined components with tapered features. Like other types of gauges, they contribute to quality control processes by ensuring that the manufactured parts conform to the specified design and dimensional requirements.
